  High Speed! High Accuracy! High Flexibility! High Efficiency!

 Fully Expandable 400/500 mmHorizontal Machining Center

Introducing the new Akari HS-450i 400/500 mm Horizontal Machining Center with technology enriched manufacturing techniques and superior quality throughout. Akari HS-450i is the ultimate expandable highly advanced horizontal machining center that is built with the highest level of components available. The “concept” is simple - utilize proven technologies, make it flexible and make it affordable!

Specifications

Flexibility by Expandability

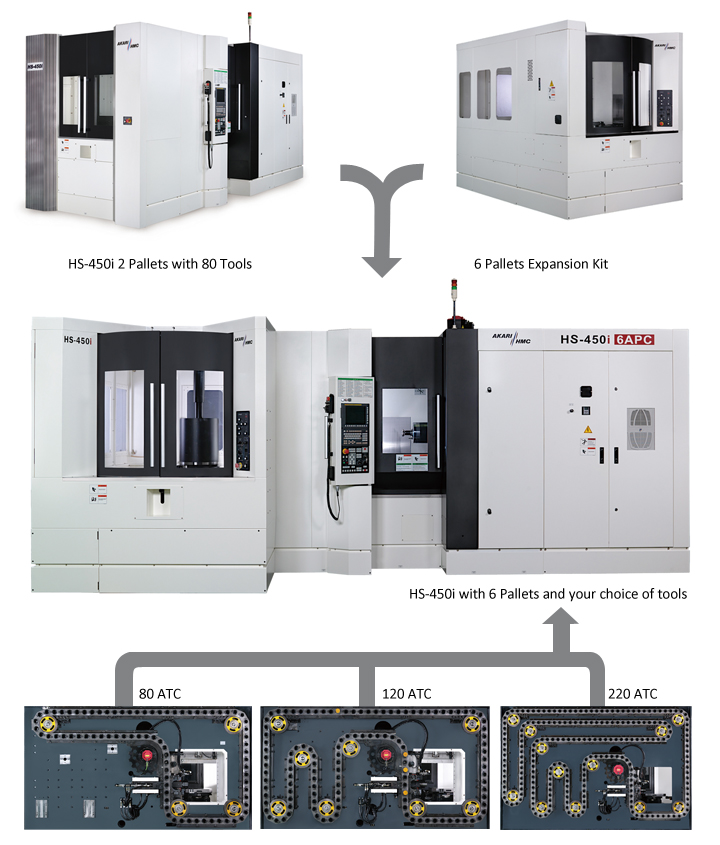

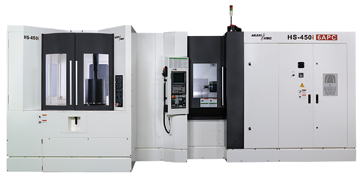

Users can select a suitable APC (Automatic Pallet Changer) as well as an ATC (Automatic Tool Changer) to meet their production requirements today, and need not worry about what lies ahead. Akari HS-450i has the unique ability to be a truly ‘on your floor’ expandable horizontal machining center within a day. Start with a standard 2 pallet machine with an 80 station tool changer and later expand it to a 6 pallet machine with a variety of tool storage capacities (120 and 220 tools as options). These features enable long-term unmanned operation or high-efficiency of multi-part, small-lot production runs as well.

Dynamic Structural Design

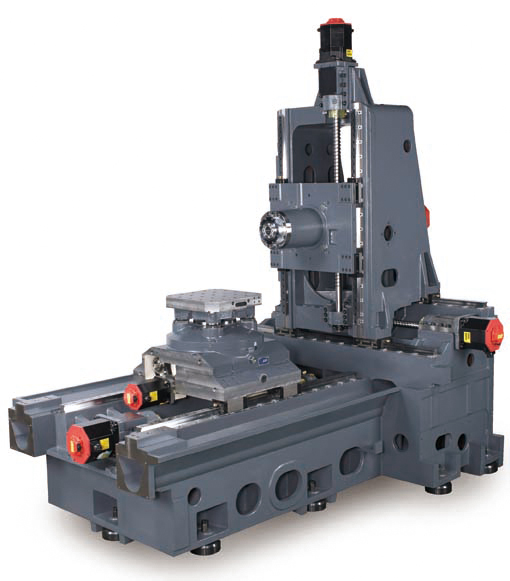

Ultra Rigid Stepped Casting Design

Structure

The dual-wall symmetrically designed column and rugged one-piece cast iron box ribbed machine base ensure the ultimate rigidity and thermal stability for machining exotic materials.

Speed

To achieve 1G+ acceleration and deceleration with 2,362 ipm axial rapid movements, a stepped casting design has been utilized. This extremely rigid and accurate design ensures maximum axial performances.

Agility

The long spindle nose design provides excellent access to all sides of the pallet as well as many types and sizes of complex workpieces such as deep pocket machining

Features

Precision

HS-450i thermal control system (TCS) utilizes a temperature probe mounted in the base casting and a chiller unit to supply the spindle cartridge, axes bearings and Y-axis servo motor mount with a constant flow of temperature controlled oil.

HS-450i also incorporates an air/oil mist lubrication system that delivers precise pressurized lubrication to Y-axis ballscrew and spindle bearings drastically reducing thermal growth.

THK®Roller Ways

THK® heavy duty roller guide ways on all three axes improve the overall machine accuracy while providing maximum rigidity and superior cutting performances.

Laser alignments and Ball-Bar calibrations ensure extremely high accuracies for the HS-450i

Triple the contact surface area of standard ball bearing linear guides.

Ergonomics

Built with the operator in mind, HS-450i is easy to access, has a no drip canopy style door and the left mounted Fanuc 31i makes it an easy machine for operators to visually set up and run.

7 day timer provides the machine with automatic power up and machine power off.

CNC Control

The FANUC Series 31i-MODEL is a multi-axis multi-path nano CNC control which complements HS-450i's advanced high-speed high-accuracy features.

Value Package

AKARI-HMC HS450i

All specifications, dimensions and design characteristics are subject to change without prior notice.
